Introduction to Anechoic Chambers

An Anechoic Chamber is a specialized testing environment designed to completely absorb sound or electromagnetic wave reflections. These chambers are utilized for acoustic, electromagnetic, and radio frequency (RF) testing by eliminating background noise and ensuring accurate measurements.

Envirotech offers an Anechoic Chamber that is designed and manufactured to meet ISO 3744, ISO 3745, and ANSI S12.55 standards. Our range of services includes the design, manufacture, and installation of anechoic chambers, including semi-anechoic, and mini-anechoic chambers. We use high-quality materials to ensure durability and our expertise in anti-reflection foam and gussets ensures reliable and highly absorbent chambers.

We manufacture our Anechoic Chambers in India to meet strict quality standards and meet custom requirements of any size. “The quietest place on earth, the anechoic chamber at Orefield Laboratories in Minnesota, is so quiet that the longest time anyone has been in it is 45 minutes. The room is silent.”

The Anechoic Room is known for its extremely low levels of background noise, which can be measured at negative decibels, such as the anechoic chamber at Orefield Laboratories in Minnesota, which has a recorded background noise level of -9.4 dBA. These chambers are ideal for reducing noise in environments wher e a quiet space is necessary for conducting research and development work. We are an anechoic chamber manufacturer in India. We work with our team of experts at Pan India.

Building an Anechoic Chamber :-

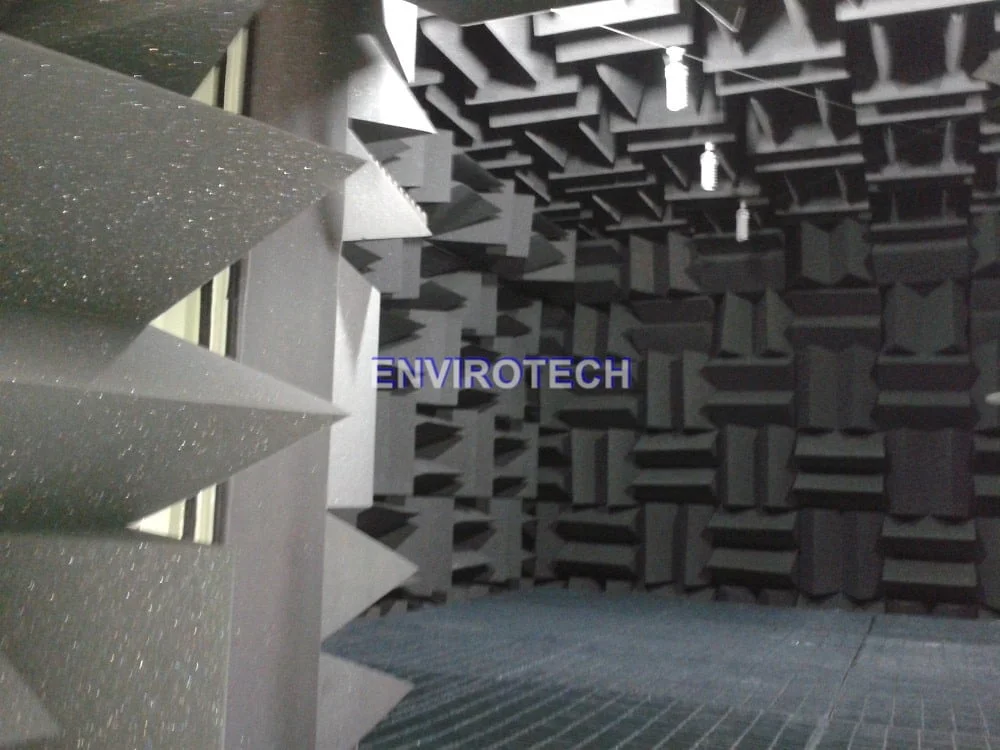

Building an anechoic chamber, a super quiet room, requires controlling sound, vibration, and even radio waves. Sound-absorbing wedges line the walls, while special floating floors isolate vibrations. Silenced ventilation ensures fresh air without noise. For radio waves, conductive materials create a Faraday cage. It’s meticulous engineering for the ultimate quiet zone.

Here’s a breakdown of crucial aspects to consider

Acoustic Treatment Selection :The right sound-absorbing materials are vital, depending on the desired frequency range for absorption.
Cut-Off Frequency :This determines the lowest frequency the chamber can effectively absorb.
Internal Noise Level :Minimizing background noise inside the chamber ensures accurate measurements.
Noise Reduction :The chamber’s structure and seals should significantly reduce noise intrusion from outside.
Vibration Isolation :Isolating the chamber from external vibrations prevents them from interfering with measurements.
Silenced Ventilation :Proper airflow is necessary, but the ventilation system must be designed to minimize noise generation.
Acoustic Doors :Special doors are needed to block sound from entering or escaping the chamber. Their size and operation are crucial for access and functionality.
Interior Floors :Suspended floors help isolate the chamber from ground vibrations.
Lighting and Electrical Systems :Lighting and electrical wiring must be designed to minimize electrical noise interference.
Structural Design :The chamber’s structure needs to be strong enough to support the anechoic wedges and maintain a quiet internal environment.
RF Shielding : If the chamber is intended to block radio waves, it needs to be constructed with conductive materials to form a Faraday cage.

By carefully considering these factors, engineers can build an anechoic chamber that meets the specific needs of its intended use.

Technical Specifications of Anechoic Chambers

The following table provides an overview of standard technical specifications for different types of anechoic chambers:

Parameter	Acoustic Anechoic Chamber	Electromagnetic Anechoic Chamber	RF Anechoic Chamber
Absorption Material	Foam Wedges	RF Absorbers	Ferrite Tiles
Frequency Range	100 Hz – 20 kHz	30 MHz – 40 GHz	1 GHz – 100 GHz
Shielding Effectiveness	N/A	>100 dB @ 1 GHz	>110 dB @ 10 GHz
Chamber Size	Customizable	Customizable	Customizable
Reflection Coefficient	< 0.01	< -40 dB	< -50 dB
Applications	Noise Testing, Audio Devices	EMC Testing, Antenna Testing	RF Shielding, 5G Testing

Choosing the Right Anechoic Chamber Manufacturer

When selecting an Anechoic Chamber Manufacturer, consider the following factors:

1. Expertise & Experience A manufacturer with years of experience in anechoic chamber design ensures high-quality and precision-engineered solutions.
2. Customization Options Leading manufacturers offer custom-built solutions tailored to specific industry requirements, including chamber size, material selection, and frequency range.
3. Compliance & Certifications Ensure the manufacturer adheres to international standards such as ISO, ANSI, IEEE, and MIL-STD for safety and performance.
4. Quality of Absorbers & Shielding The quality of absorptive materials, including RF absorbers, ferrite tiles, and acoustic foam , impacts chamber effectiveness.
5. Installation & Maintenance Support A reliable manufacturer provides end-to-end support, including chamber installation, calibration, and maintenance services.

Anechoic Chamber Cost :-

Let’s explore some major factors when developing or calculating an anechoic room (Chamber).

1. Size and Complexity : This is the biggest influence on price. Larger chambers require more materials and construction. Complex shapes beyond a simple box may cost more due to additional engineering and specialized construction techniques.
2. Absorption Material Quality : Anechoic chambers rely on specialized wedges or cones to absorb sound waves. Higher quality wedges, typically made with glass wool or fiberglass composites, provide broader absorption across different frequencies, but come at a premium. Less expensive materials may suffice for limited frequency testing.
3. Frequency Range : The desired range of sound waves you want to eliminate impacts material selection. Lower frequencies require deeper and more complex wedges, significantly increasing cost. Chambers designed for high-frequency testing can utilize thinner, less expensive absorption materials.
4. Customization and Complexity : Adding features like access doors, observation windows, or special ventilation systems increases complexity and cost. Similarly, chambers requiring electromagnetic shielding for electronic device testing necessitate additional materials and construction techniques, driving the price up.
5. Installation and Calibration : The expertise needed for proper installation and calibration of the chamber adds to the overall cost. This includes ensuring the wedges are positioned correctly and the chamber meets the desired background noise level specifications.
